Hi, Jason, Could you please check this ticket? I think you can just add the keycode for RCU version, but if you get anythings to do, please let me know. I will send the RCU when I get it, so please just add keycode first. Please apply this job to SWAN first. I will test when I get the BA12E/BA03E RCU. Thank you. image.png (93,893 bytes) |
|
|
Hi Sangmin, Have you gotten BA12E/BA03E RCU ? If yes, could you kindly bring 1~2 pcs of RCU separately to us when your team have business trip to Taiwan on Dec. 15th? Thanks, Jacky |
|
|
Hi, Jacky, Wooshin will bring the RCUs on this business trip. The mass production for RCU is not complete, so we can send you 1 RCU per model. BMM-BT12E : 1EA BMM-BA03E : 1EA BRM-BT12E : 1EA BRM-BA03E : 1EA Thank you. |
|
|
Hi Sangmin, I need scan code of RCU info. These codes is defined by SKB. so please provide it. Thanks, Jason |
|
|
Hi, Jason, I asked it to SKB, I will update when I get a feedback from SKB. Thank you. |
|
|
Hi, Jason, Please check the followings. (IR Code) (Linux scan code) (Android Keycode) // BRM-BT12E 0xF3CA 715 KEYCODE_SKB_FUNC_17 // BRM-BA03E 0xF3DA 716 KEYCODE_SKB_FUNC_17 // BMM-BT12E 0xF4CA 717 KEYCODE_SKB_FUNC_17 // BMM-BA03E 0xF4DA 718 KEYCODE_SKB_FUNC_17 Normally, one RCU has several keycode for version, but BT12E and BA03E have only 1 keycode for version. Thank you. Sangmin. |
|
|
Hi Sangmin, >>Normally, one RCU has several keycode for version, but BT12E and BA03E have only 1 keycode for version. so is the information of excel wrong ? 0xF3CA~0xF3CD : BT12E(충전식) => 4 versions (Remote Solution) 0xF3DA~0xF3DD : BA03E(충전식) => 4 versions (Remote Solution) 0xF4CA~0xF4CD : BT12E(충전식) => 4 versions (Movon) 0xF4DA~0xF4DD : BA03E(충전식) => 4 versions (Movon) Thanks, Jason |
|
|
Hi, Jason, Yes, the excel is wrong. |
|
|
Hi Sangmin, Could SKB provide new excel? Thanks, Jason |
|
|

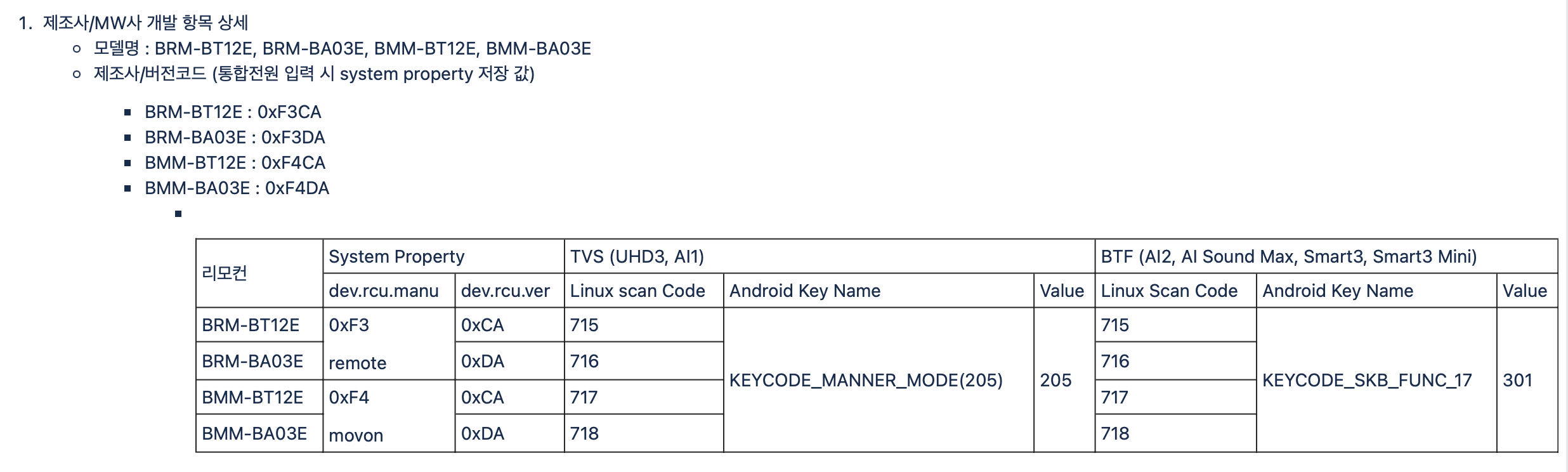

Hi, Jason, No, they didn't. SKB just changed the Jira ticket. https://jira.skbroadband.com/browse/BPM-12188 Thank you. Sangmin. BT12E_BA03E_Keycode.png (209,272 bytes) |
|
|
Hi Sangmin, Done, push to UI535 2022-12-27 17:42:37 | jason.tf.ling@fii-.. | ee45733 | device/synaptics/sequoia | Support RCU BA03E/BT12E [1/4] 2022-12-27 16:03:24 | jason.tf.ling@fii-.. | 976ec145 | syna-release/linux_4_9_q | Support RCU BA03E/BT12E [3/4] 2022-12-26 17:42:05 | jason.tf.ling@fii-.. | 4c6e68e | syna-release/boot | Support RCU BA03E/BT12E [4/4] 2022-12-26 17:39:35 | jason.tf.ling@fii-.. | d5cc3bd | hardware/realtek | Support RCU BA03E/BT12E [2/4] Thanks, Jason |
|
|
Hi, Jason, I'm sorry I missed your last comment. But, these commits should be removed from 535 branches. Please apply them to 534 branches. Thank you. |
|
|
Hi Sangmin, It is removed from 535 and applied to 534. |
|
|
Hi Kerwin, Please apply this ticket's modifications to SMART3 and UHD4. If you share the test FW with this modifications first, I will test it. Thank you. |
|
|
Hi JunGyu, i upload RCU test F/W to ALT server. The F/W is SD version and the link is in /release_by_fxn/temp_wfh/jerry/eagle/RCU Please download and verify. Jerry |
|
|
Hi Jerry, I have tested RCU test with your F/W, it is working good. Please apply this modification to Smart3 and UHD4. Note that when apply this commit to Smart3, please apply both ATV10 5.3.4 and ATV12 branches. Thank you. |
|
|
Hi JunGyu, Ok , I wll apply this patch to ATV10/ATV12/UHD4. Thank you. Jerry |
|
|
Hi JunGyu, Please apply this modification to Smart3 and UHD4. Note that when apply this commit to Smart3, please apply both ATV10 5.3.4 and ATV12 branches. --> done Jerry |
|
|
Hi, Jerry, Please revert all patches about BA03E/BT12E for ATV10/ATV12/UHD4. SKB decided to apply these RCUs later. Thank you. Sangmin Choi. |
|
|
Hi, Jim, SWAN also need to revert patches about BA03E/BT12E, but it should be reverted in 536 branches. I will let you know when the 536 branches are ready. Thank you. Sangmin Choi. |
|
|
Hi Sangmin, done, I revert all patches about BA03E/BT12E for ATV10/ATV12/UHD4. Jerry |
|
|
Hi, Jim, Please revert all patches about BA03E/BT12E for SWAN. You can apply it only 536 branches. Thank you. Sangmin. |
|
|
Hi Sangmin, May I know why do we revert all the patches of new RCU for SWAN? Thanks, Jacky |
|
|
Hi, Jacky, SKB requested it, following is the comment from SKB. ==================================================== 해당이슈는 system property 수정 및 기존 리모컨 키코드 수정 등 수정사항이 많아 다음 신규리모컨 개발 때 포함하도록 하겠습니다. 이미 수정사항을 merge하신 경우 revert 부탁드립니다. ==================================================== There are many fixes in this issue, such as fixing system properties and fixing existing remote control key codes. We will include it when developing the next new remote control. If you have already merged the changes, please revert. ==================================================== Thank you. Sangmin. |
|
|
Hi Sangmin, I've revert BA03E/BT12E commits in 536 branch. |
|
|
Dear Jim, Jerry, Thank you always. |
|
|

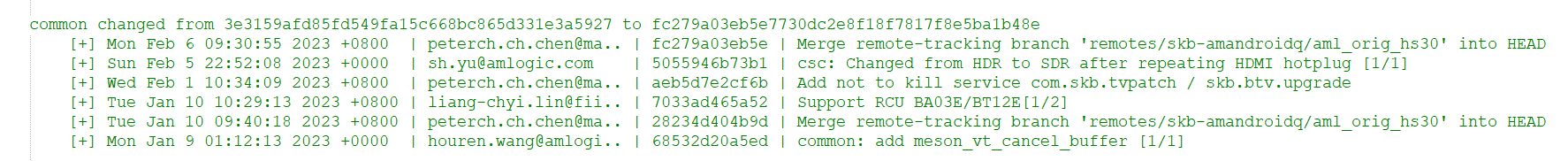

Hi Jerry, I found that BFX-AT100 536 branch is not revert this commit. Please revert BA03E/BT12E commit in 536 branch. Thank you. Kim image-2.png (101,024 bytes) image-3.png (40,138 bytes) |
|
|
Hi JunGyu, I've revert BA03E/BT12E commits in 536 branch for BFX-AT100. Jerry |
|
|
Hi Jerry, Thank you for your support. Kim |
